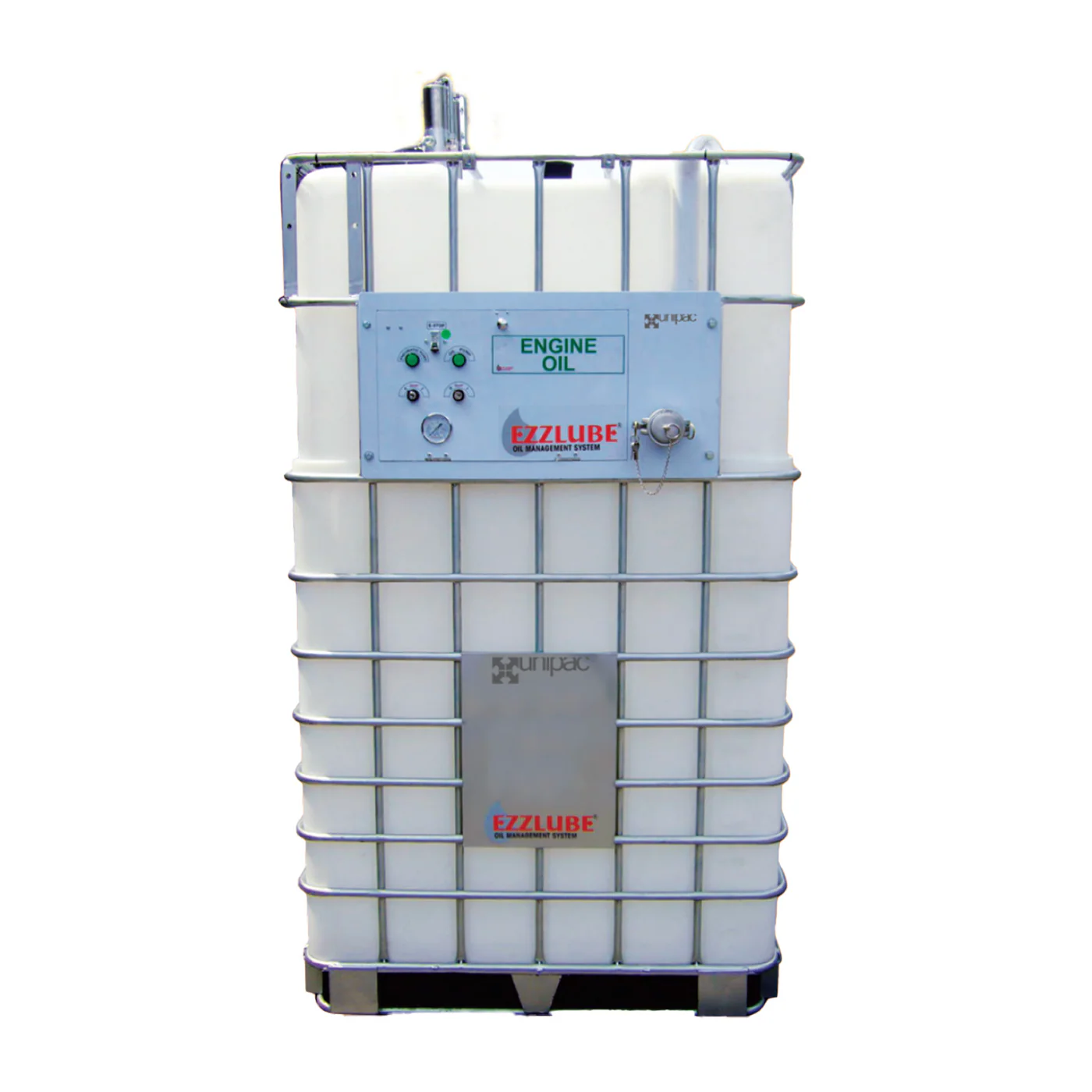

New Oil EZZLube Bulk Oil Management System

Application Type | Storage & controlled dispensing of fresh engine oil

Storage Capacity | 2100 liters (max)

Power Supply | 1.6kW, 230V, 50Hz (1ph, 2.1 HP)

Motor | Asynchronous, IP55, flange-mounted

Transfer Pump | 50–55 L/min (Vane type)

Pneumatic Pump | 18 L/min @ 7.0 Bar × 2 units

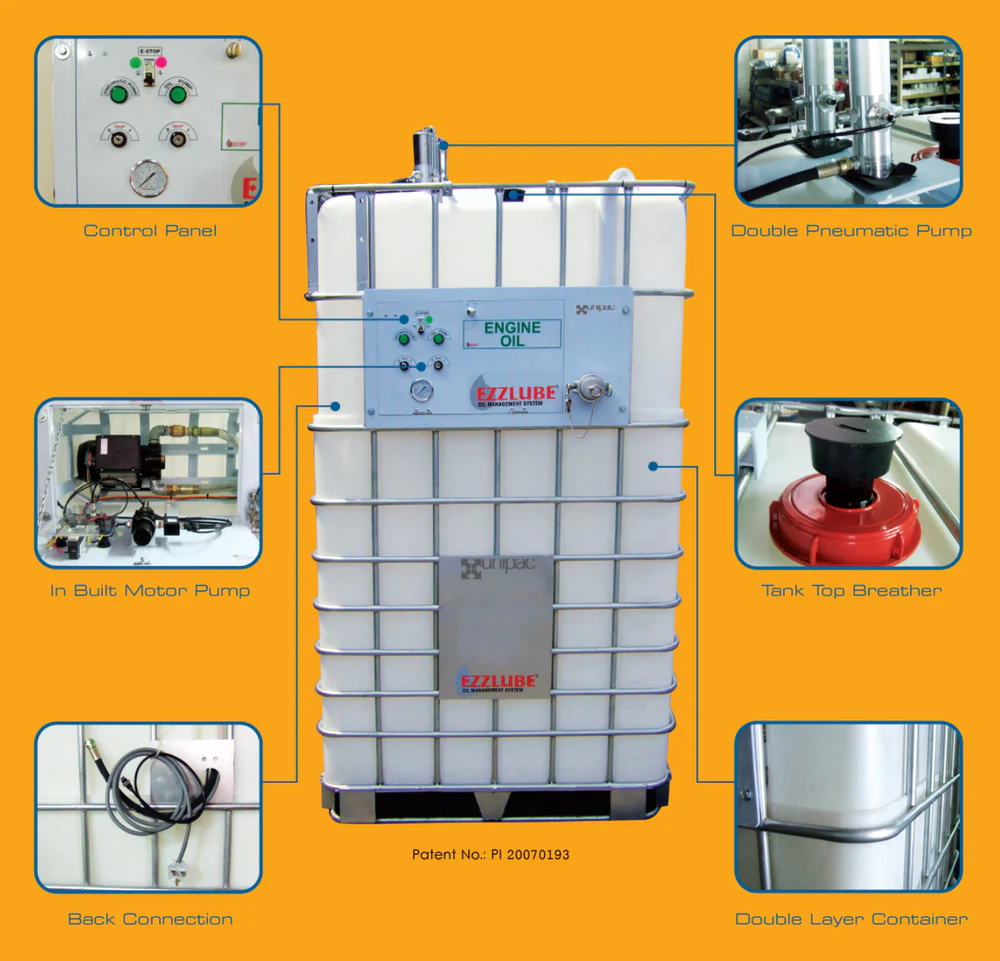

Control System | Pneumatic dispensing, electric key switch

Safety Features | Emergency stop button, 5 Bar bypass valve

Tank Construction | Double-layer container with breather

Monitoring & Control | Front control panel with indicators

Weight (Empty/Full) | 210 kg / 2210 kg

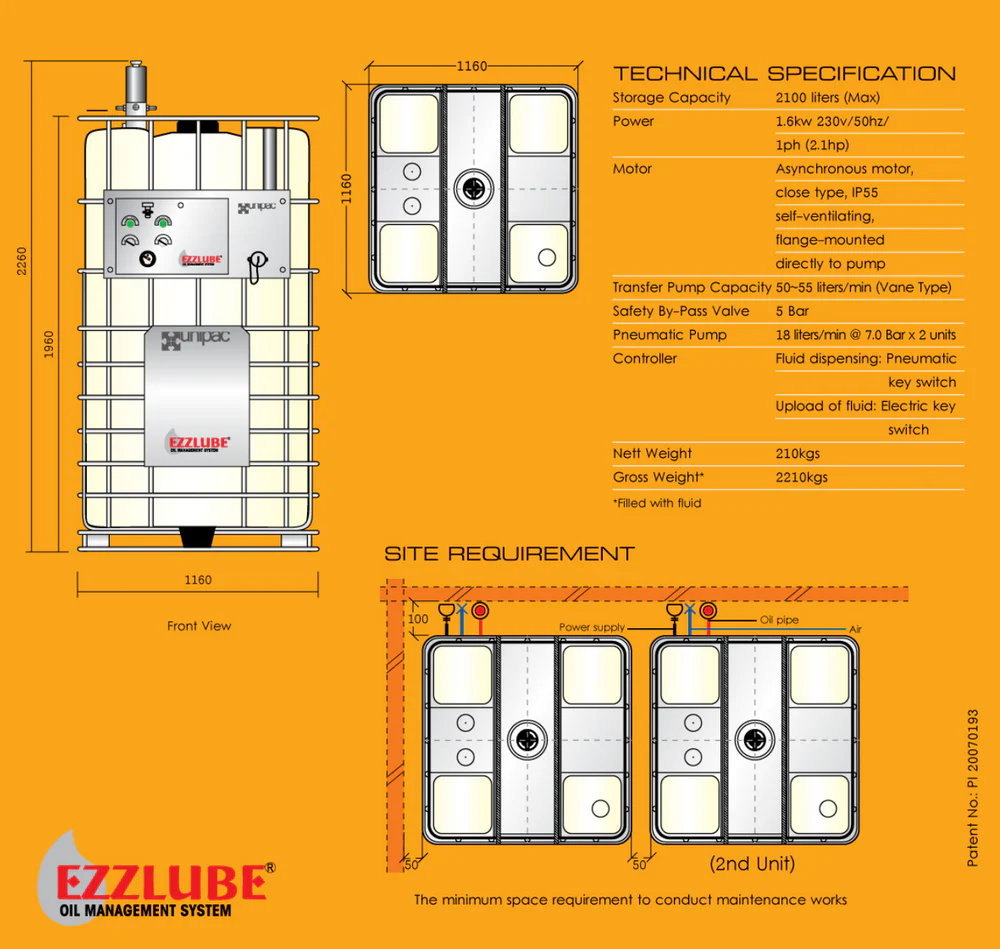

Min. Maintenance Clearance | 100 mm (sides), 500 mm (front/back)
